Spring Cloud(Finchley版本)系列教程(五) 服务网关(Zuul)
一、Zuul简介
Zuul 是 Netflix OSS 中的一员,是一个基于 JVM 路由器和服务端的负载均衡器。提供路由、监控、弹性、安全等方面的服务框架。Zuul 能够与 Eureka、Ribbon、Hystrix 等组件配合使用。
zuul核心功能是过滤器、路由、异常处理,通过过滤器还能扩展出其他功能:
1)动态路由、2)请求监控、3)认证鉴权、4)压力测试、5)灰度发布
Zuul的主要功能是路由转发和过滤器。路由功能是微服务的一部分,比如/api/user转发到到user服务,/api/shop转发到到shop服务。zuul默认和Ribbon结合实现了负载均衡的功能。
二、创建Zuul工程
复制eurekaClient工程,修改名称为hepServiceZuul。
<artifactId>hepServiceZuul</artifactId>
<name>hepServiceZuul</name>
<description>hepServiceZuul</description>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-zuul</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
三、启用并配置Zuul
启动类HepServiceZuulApplication加上注解@EnableZuulProxy,开启zuul的功能
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.boot.SpringApplication;
import org.springframework.cloud.netflix.zuul.EnableZuulProxy;
@SpringBootApplication
@EnableDiscoveryClient
@EnableZuulProxy
public class HepServiceZuulApplication {
public static void main(String[] args) {
SpringApplication.run(HepServiceZuulApplication.class, args);
}
}
在application.yml上增加/hep-a/**
和/hep-b/**
zuul:
routes:
hep-a:
path: /hep-a/**
serviceId: hepServiceRibbonHystrix
hep-b:
path: /hep-b/**
serviceId: hepServiceOpenFeignHystrix
application.yml文件内容如下
server:
port: 8011 # 端口号
spring:
application:
name: hepServiceZuul # Eureka名称
zuul:
routes:
hep-a:
path: /hep-a/**
serviceId: hepServiceRibbonHystrix
hep-b:
path: /hep-b/**
serviceId: hepServiceOpenFeignHystrix
eureka:
instance:
prefer-ip-address: false
hostname: hepServiceZuul
client:
healthcheck:
enabled: true
fetch-registry: true
register-with-eureka: true
service-url:
defaultZone: http://eureka:eurekapwd@www.huerpu.cc:1678/eureka/
指定服务注册中心的地址为http://eureka:eurekapwd@www.huerpu.cc:1678/eureka/,服务的端口为8011,服务名为hepServiceZuul;以/hep-a/ 开头的请求都转发给hepServiceRibbonHystrix服务;以/hep-b/开头的请求都转发给hepServiceOpenFeignHystrix服务;
win11的host文件增加了下面三个
127.0.0.1 hepServiceZuul
127.0.0.1 hepServiceRibbonHystrix
127.0.0.1 hepServiceOpenFeignHystrix
四、验证Zuul

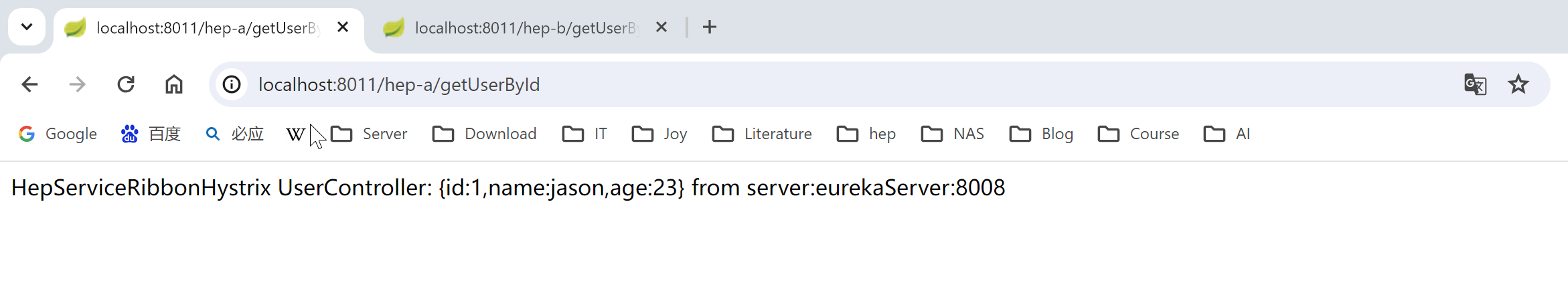

打开浏览器访问http://localhost:8011/hep-a/getUserById

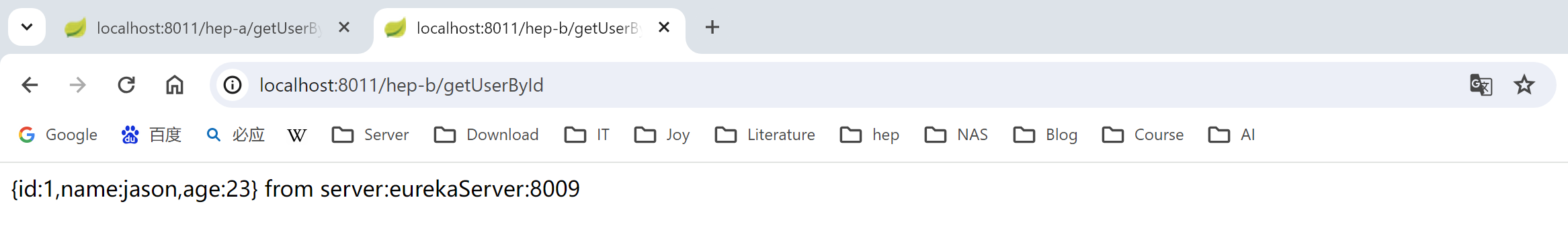

访问http://localhost:8011/hep-b/getUserById
这说明zuul起到了路由的作用。
五、服务过滤
zuul不仅只是路由,并且还能过滤,做一些安全验证。继续改造工程,增加一个自定义的HepZuulFilter。
package cc.huerpu.eurekaserver.config;
import com.netflix.zuul.ZuulFilter;
import com.netflix.zuul.context.RequestContext;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;
import javax.servlet.http.HttpServletRequest;
@Component
public class HepZuulFilter extends ZuulFilter {
private static Logger log = LoggerFactory.getLogger(HepZuulFilter.class);
@Override
public String filterType() {
return "pre";
}
@Override
public int filterOrder() {
return 0;
}
@Override
public boolean shouldFilter() {
return true;
}
@Override
public Object run() {
RequestContext ctx = RequestContext.getCurrentContext();
HttpServletRequest request = ctx.getRequest();
log.info(String.format("%s >>> %s", request.getMethod(), request.getRequestURL().toString()));
Object accessToken = request.getParameter("token");
if(accessToken == null) {
log.warn("hep zuul caller token is empty");
ctx.setSendZuulResponse(false);
ctx.setResponseStatusCode(401);
try {
ctx.getResponse().getWriter().write("hep zuul caller token is empty");
}catch (Exception e){}
return null;
}
log.info("ok");
return null;
}
}
filterType返回一个字符串代表过滤器的类型,在zuul中定义了四种不同生命周期的过滤器类型,pre表示路由之前。

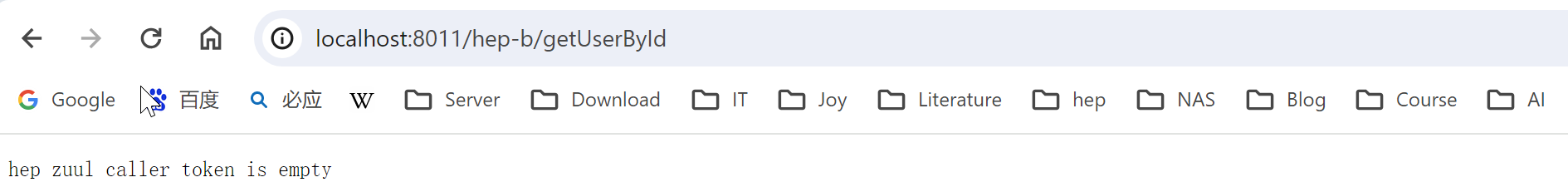

这时访问:http://localhost:8011/hep-a/getUserById 网页显示:

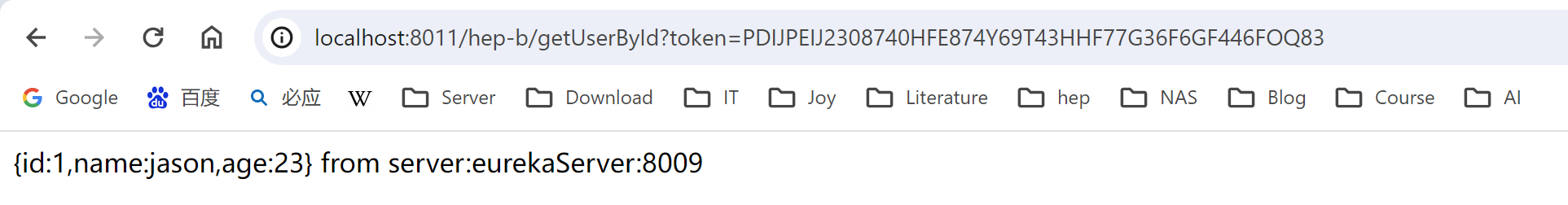

访问:http://localhost:8011/hep-a/getUserById?token=PDIJPEIJ2308740HFE874Y69T43HHF77G36F6GF446FOQ83 网页正常显示
参考文章https://forezp.blog.csdn.net/article/details/81041012
